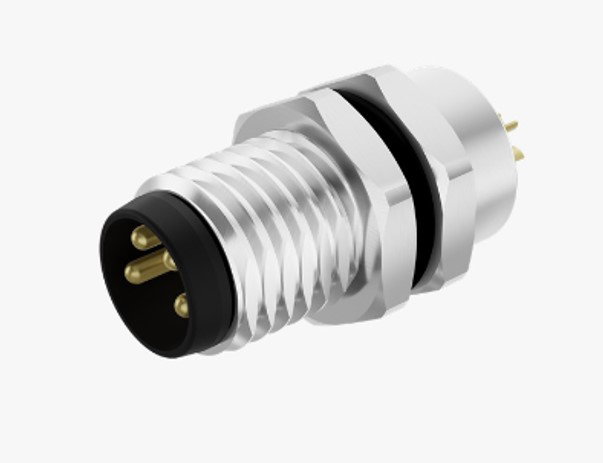

M8 4 Pin Male Panel Mount Connector
Product ID: 76178074524151
Product SKU:TB-M8011
Product is in stock hurry now!
₹369.00₹ 430.00
(14% OFF) Parameter | Value |
|---|---|
Contacts Poles | 4 Pin |
Connector Gender | Male |
Coding | A-Coded |
Mounting Type | Straight Panel Mount |
Panel Locking Side | Front Side Fastening (Rear Panel Mount) |
Panel Cut Size | M8 × 1.0 |
Waterproof Protection | IP67 |
Current Rating | 3 A |
Voltage Rating | 60 V |
Contact Resistance | ≤ 5 mΩ |
Insulation Resistance | ≥ 100 MΩ |
Operating Temperature | -40°C to +80°C |
Contact Termination | Soldering |
Locking Material | Brass with Nickel Plating |
