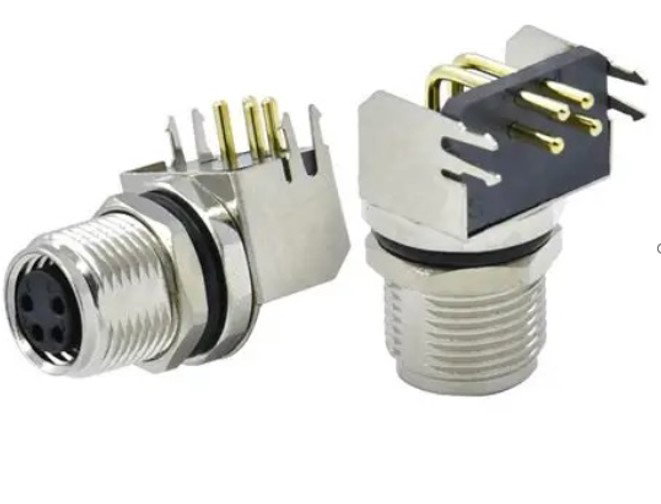

M8 4 Pin Female Rear Panel Mount Connector With PCB mount Contacts

Contacts Poles

4 Pin

Connector Gender

Female

Coding

A-Coded

Mounting Type

Straight Rear Panel Mount

Panel Locking Side

Front Side Fastening (Rear Panel Mount)

Contact Orientation

Right Angle

Mounting

PCB Mountable

Panel Cut Size

M8 × 1.0

Cable Length

0.3 Meter

Wire Gauge

24 AWG

Waterproof Protection

IP67

Current Rating

3 A

Voltage Rating

60 V

Contact Resistance

≤ 5 mΩ

Insulation Resistance

≥ 100 MΩ

Operating Temperature

-40°C to +80°C

Contact Termination

PCB Soldering

Locking Material

Brass with Nickel Plating
